Cellular Steel Deck
Engineered for aesthetics, acoustics, and structural strength
Photo credit: Liza G Photography

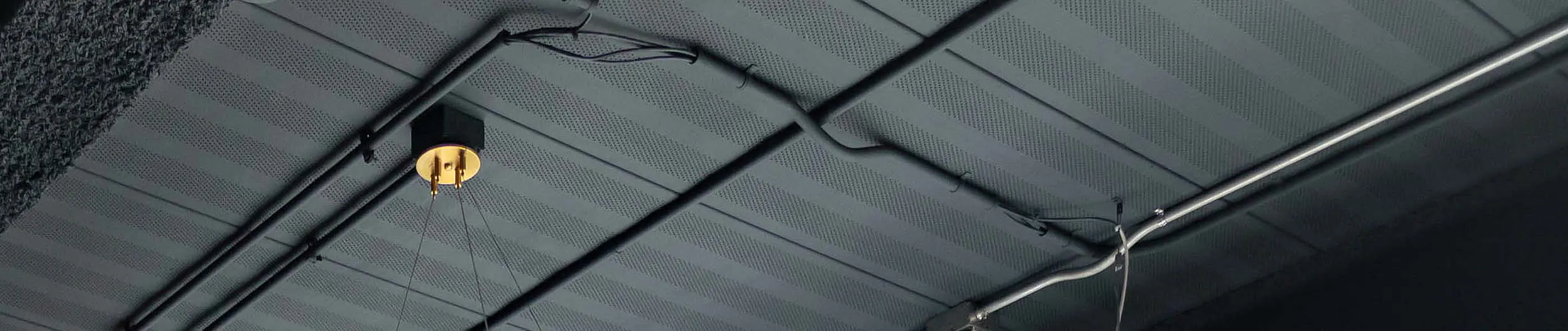

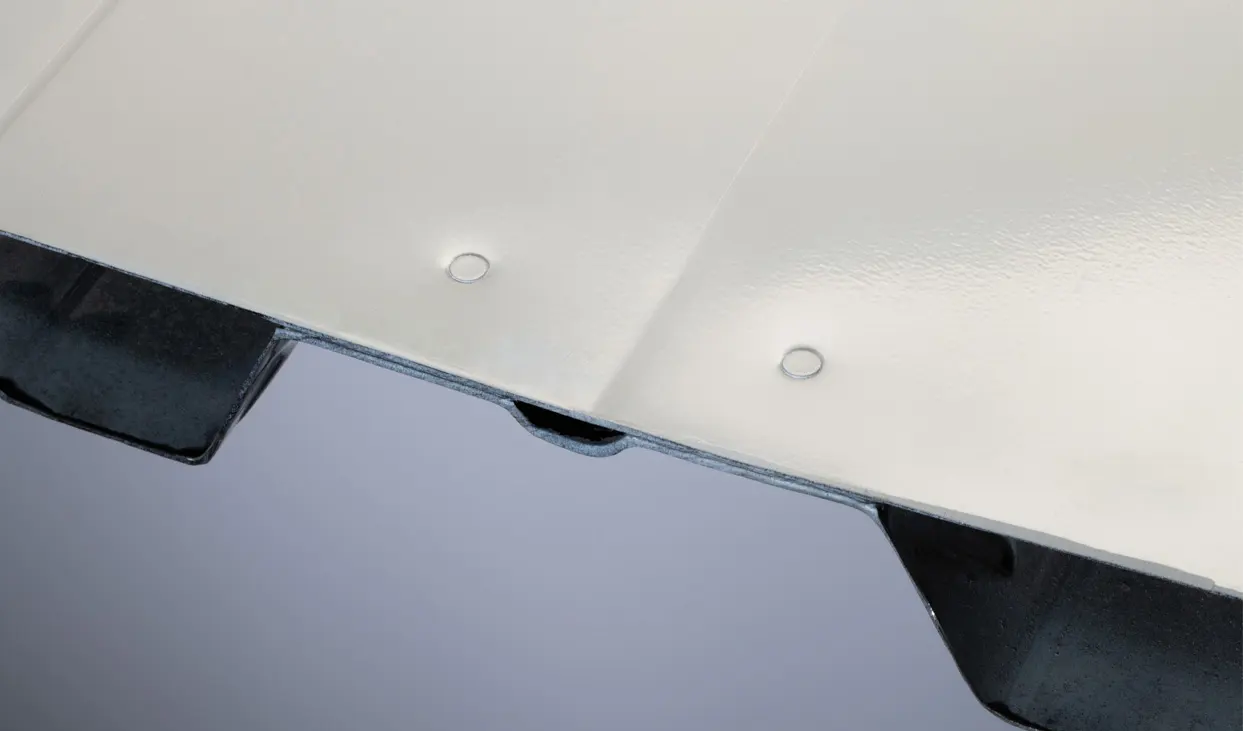

Cellular steel deck consists of fluted steel deck (hat) combined with a secured flat steel plate (or liner panel). The liner can either be riveted or welded to the hat, creating an enclosed cavity, or “cell,” between the two layers. Beyond structural support and aesthetics, the cellular configuration enhances the metal deck’s versatility. The enclosed cells can potentially serve as effective pathways for electrical wiring, data cables, and other utilities.

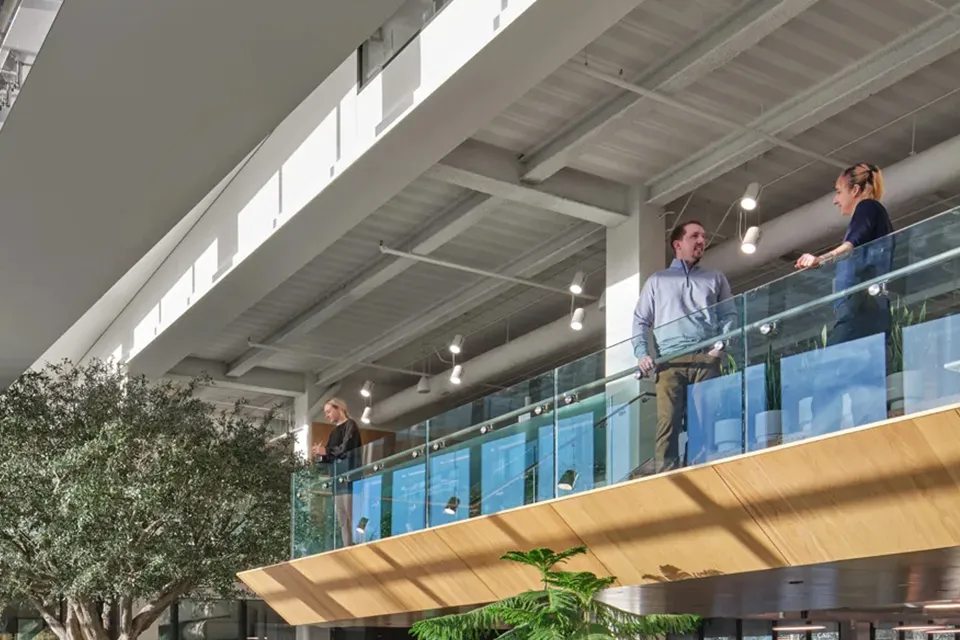

B-Dek Cellular Roof Deck
- A 1½-inch-deep structural roof deck with support surface for roofing materials
- Liner panel and self-aligning nestable side-laps for a finished ceiling aesthetic with concealed fasteners
- Standard and acoustical deck profiles are ICC-approved

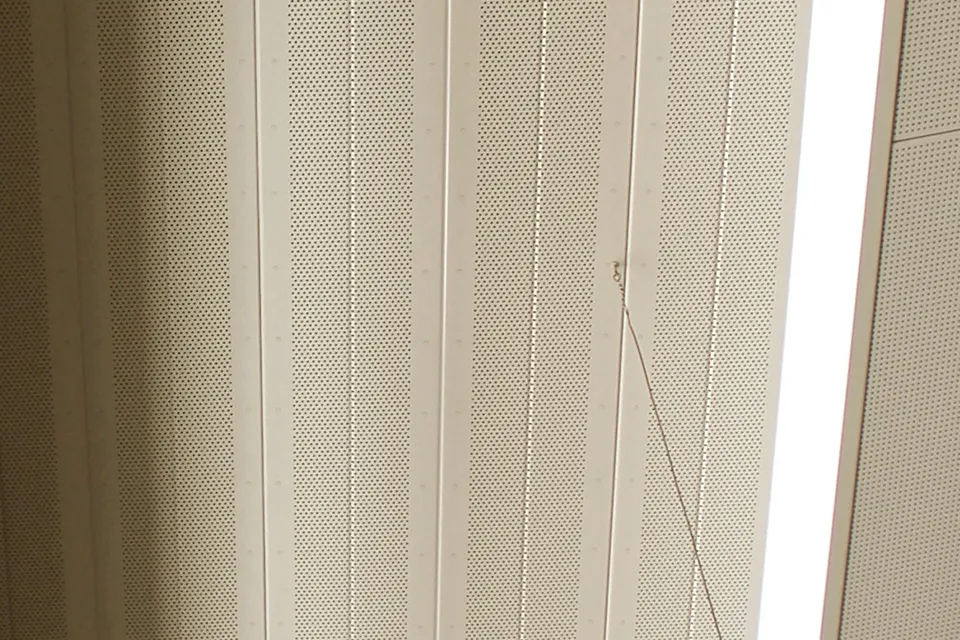

N-Dek Cellular Roof Deck
- 3-inch-deep structural roof deck profile with support surface for roofing materials
- Liner panel and self-aligning nestable side-laps for a finished ceiling aesthetic with concealed fasteners
- Fiberglass insulation batts installed in the deck cells at the factory

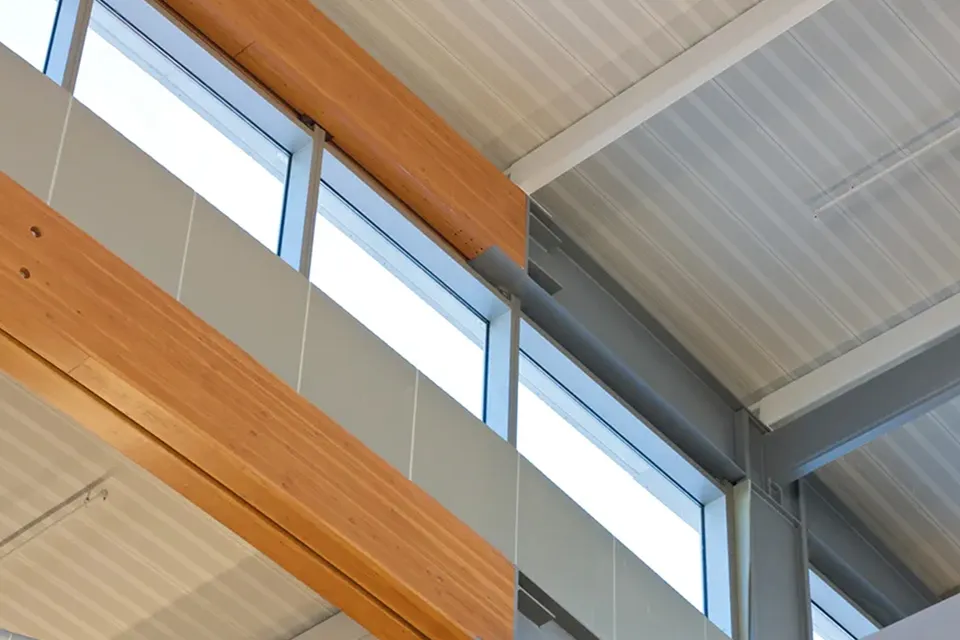

Curve-Dek® Cellular Roof Deck
- 3-inch-deep structural roof deck profile, clear span capacity up to 18 feet
- Radii as low as 100 feet
- Available in cellular acoustical profile
Deep-Dek® Cellular Roof and Floor Deck
- Ideally suited for long, open interior and exterior spaces within steel structures
- Double- or triple-cell (hat) metal deck unit with a liner panel creates a support surface for various components
- Sound-absorption features and factory-applied coatings create a finished ceiling aesthetic and meet acoustical and structural requirements
Standard Composite Cellular Floor Deck
- Continuous riveted linear panel for increased deck spans, clear spans, and cantilever spans over non-cellular types
- Fiberglass insulation batts installed in the deck cells at the factory
- 2.0CFDC, 2.0CFDCA, 3.0CFDC, 3.0CFDCA available in 24- and 36-inch cover widths
